2.5 Watt Model
2.5 Watt Operation

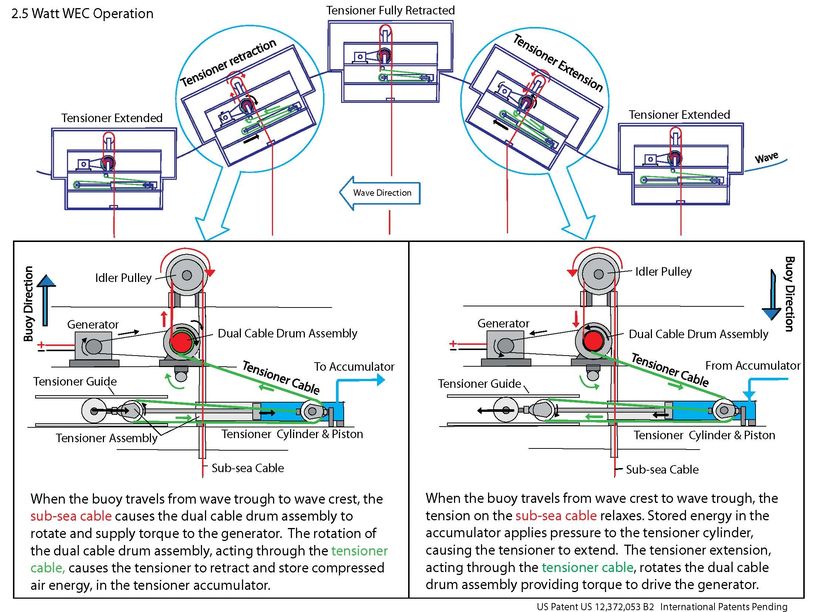

2.5 watt power converter Tensioner And Air System Operation
2.5 Watt Buoy Design
2.5 Watt Buoy design details
Patent Pending
hydrostatic properties
Hydrostatic Properties Buoy No Load
Hydrostatic Porperties under load
2.5 Watt Power Converter Design Elevation View
Electrical Diagram
Patent Pending
2.5 watt power converter tensioner level plan view
2.5 WATT POWER CONVERTER pOWER ASSEMBLY LEVEL DESIGN
PATENT PENDING
.
2.5 WATT MODEL pOWER CONVERTER
2.5 WATT MODEL POWER Bench Test
Picture of Model PTO Generating Power During Bench Test
Generator Output Measurements
Oscilloscope:
Purple A/C Prior to Rectifier
Green Line DC After Rectifier
Generator Volts: 8.07 DC
Generator Load: 2 Watts
Subsea Cable Pull: 29 Pounds
